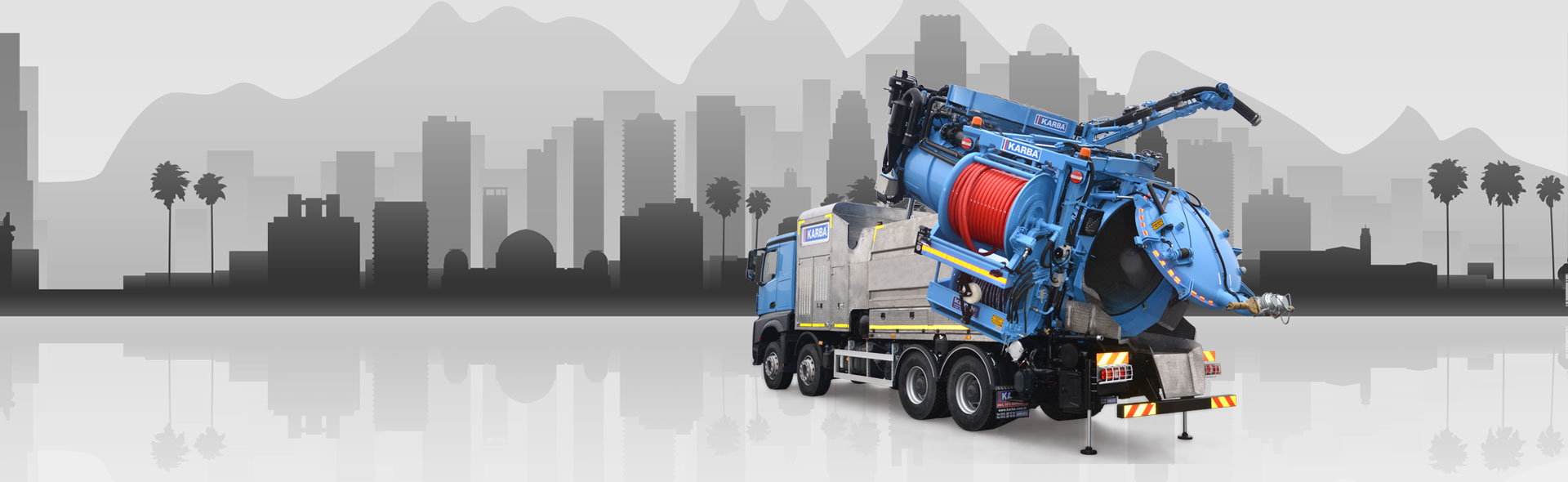

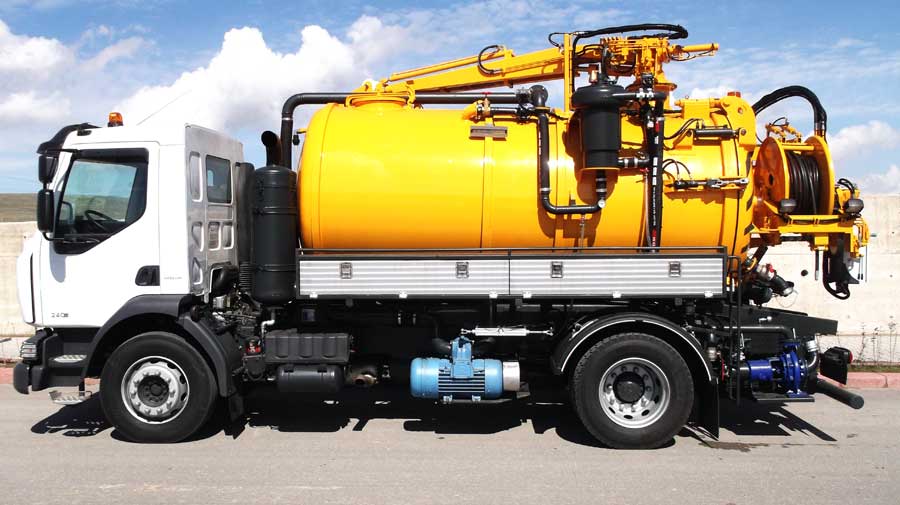

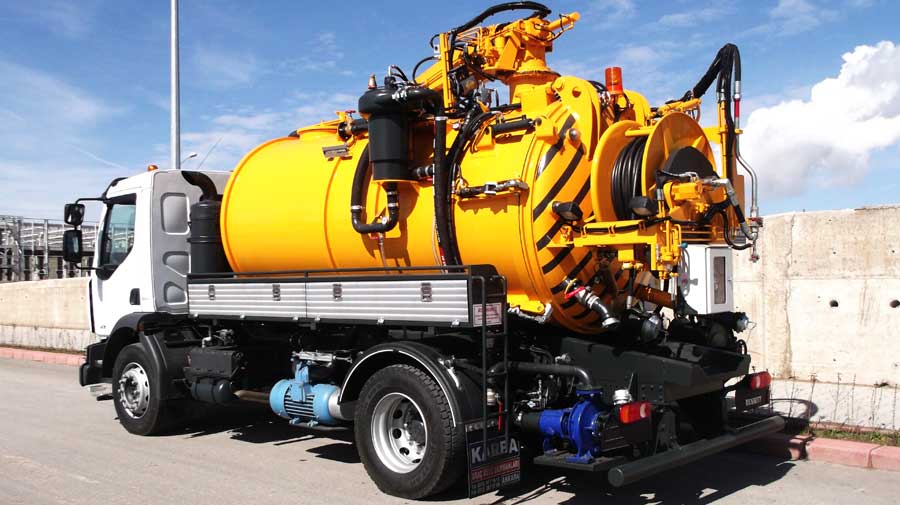

Combine Sewer Cleaning Vehicles
Combined Vehicles With Water Recovery System
The combined vehicles shall be equipped with a water recovery system. This system shall filter the suctioned wastewater in the wastewater tank during vacuum when the vacuum pump and water pump are active, shall transfer this filtered water to the clean water tank, and shall ensure that it is used in the pressure system.
-
Standard Accessories
-
Optional Accessories
Combined Vehicles With Water Recovery System
| Chassis | 6x2, 6x4 | 8x4 |
| Vehicle Carrying Capacity | At least 25000 kg | At least 32000 kg |
| Tank Capacity | 12000 Lt | 16000 Lt |
| Clean Water Capacity | 5000 Lt | 7000 Lt |
| Waste Water Capacity | 7000 Lt | 9000 Lt |
| Tank Material | st52 | st52 |
| Vacuum Pump Capacity | 3800-6500 m3/Hour | 3800-6500 m3/Hour |
| High Pressure Pump Capacity | 330-480 Lt / min at 170-230 Bar | 210 lpm at 386 bar |
| Jib arm boom | 6" | 6" |
| Main Hose Drum | 120 mt Long 1" Hose | 120 m of 1 1/4" jetting hose |
| Valves | 6" suction 6" discharge | 6" suction 6" discharge |
| Cabinets | On both sides of the tank along the tank | On both sides of the tank along the tank |
| Drive | Intermediate gearbox/PTO | Intermediate gearbox/PTO |
