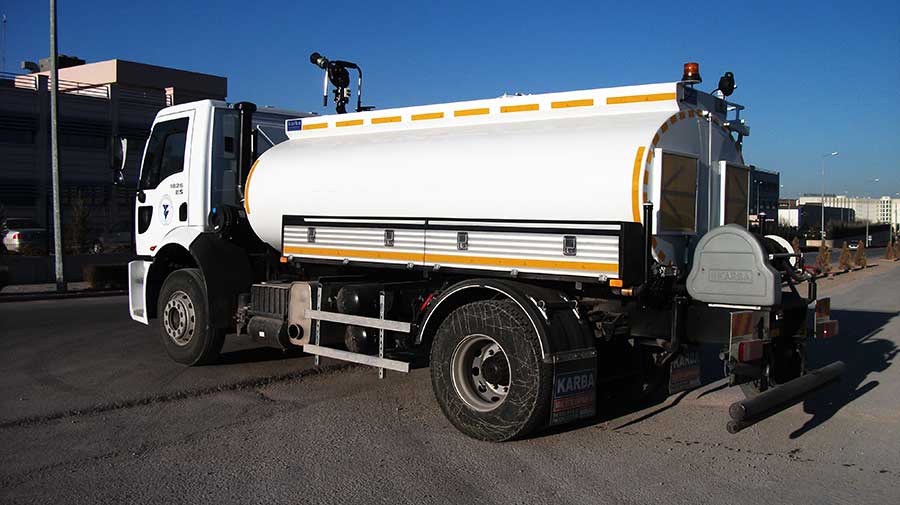

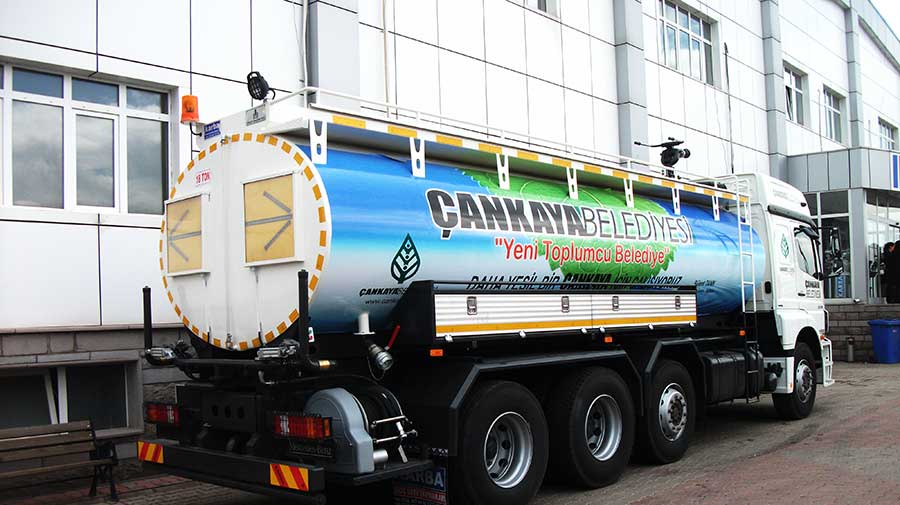

Washing General Purpose Tankers
Equipment used in transport of drinking and utility water. These tankers are manufactured in difference capacities generally up to 20,000 liters depending on the gross vehicle weight of the chassis vehicle which they will be mounted on. Depending on the area of use these vehicles are manufactured as carbon steel or stainless steel. Also depending on the area of use these vehicles can be equipped
with watering nozzles in the front and on the rear.
These vehicles are equipped upon need with centrifugaL type pumps driven by the vehicle engine with a capacity of 1500 l/m at 10 bars. In case of need, pumps with different capacities can be used. Depending on the area of use these vehicles can be equipped with a throwing monitor. The pumps used in these vehicles have a front vacuum system which allows filling the tank from a fixed water source.
-
Standard Accessories
- 2 units suction hoses (4"-3 mt)
- 2 unit fire fighting hose (20 mt-2")
- 1 unit, handle reel
- 2 Coupling Spanners (2"-2.5"-4")
- 1 unit of suction filter with clack
- 1 unit of nozzle (2” and 2,5”)
- Front Irrigation System (Front watering operated by pressure, rear gravity flow)
- Stainless steel fittings
-
Optional Accessories
- Rear water distribution valves attached bar
- Stainless fittings
- Tank Material AISI 304
Download the Brochure
Washing General Purpose Tankers KRB - ST03
Vehicle Carrying Capacity |
At least 8500 kg, 6x2, 6x4 |
Tank Capacity |
3000 m3 |
Tank Material |
st 37 |
First Intervention Reel |
Aluminium made / 1” -30 m hose / Jet-Spray gun |
Valves and Couplings |
Stainless Aluminium |
Pump |
Karba 1500 N (10 Bar 1500 Lt/Dk) |
Cabinets |
2 units of Aluminium Doors |
Warning and Illumination |
2 Cylindrical Type Top Lamp |
Monitor |
Water/Foam Monitor (Karba 1200) |
Washing General Purpose Tankers KRB - ST06
Vehicle Carrying Capacity |
At least 15000 kg, 6x2, 6x4 |
Tank Capacity |
6000 m3 |
Tank Material |
st 37 |
First Intervention Reel |
Aluminium made / 1” -30 m hose / Jet-Spray gun |
Valves and Couplings |
Stainless Aluminium |
Pump |
Karba 1500 N (10 Bar 1500 Lt/Dk) |
Cabinets |
2 units of Aluminium Doors |
Warning and Illumination |
2 Cylindrical Type Top Lamp |
Monitor |
Water/Foam Monitor (Karba 1200) |
Washing General Purpose Tankers KRB - ST08
Vehicle Carrying Capacity |
At least 18000 kg, 6x2, 6x4 |
Tank Capacity |
8000 m3 |
Tank Material |
st 37 |
First Intervention Reel |
Aluminium made / 1” -30 m hose / Jet-Spray gun |
Valves and Couplings |
Stainless Aluminium |
Pump |
Karba 1500 N (10 Bar 1500 Lt/Dk) |
Cabinets |
2 units of Aluminium Doors |
Warning and Illumination |
2 Cylindrical Type Top Lamp |
Monitor |
Water/Foam Monitor (Karba 1200) |
Washing General Purpose Tankers KRB - ST13
Vehicle Carrying Capacity |
At least 25000 kg, 6x2, 6x4 |
Tank Capacity |
13000 m3 |
Tank Material |
st 37 |
First Intervention Reel |
Aluminium made / 1” -30 m hose / Jet-Spray gun |
Valves and Couplings |
Stainless Aluminium |
Pump |
Karba 1500 N (10 Bar 1500 Lt/Dk) |
Cabinets |
2 units of Aluminium Doors |
Warning and Illumination |
2 Cylindrical Type Top Lamp |
Monitor |
Water/Foam Monitor (Karba 1200) |
Washing General Purpose Tankers KRB - ST18
Vehicle Carrying Capacity |
At least 32000 kg, 6x2, 6x4 |
Tank Capacity |
18000 m3 |
Tank Material |
st 37 |
First Intervention Reel |
Aluminium made / 1” -30 m hose / Jet-Spray gun |
Valves and Couplings |
Stainless Aluminium |
Pump |
Karba 1500 N (10 Bar 1500 Lt/Dk) |
Cabinets |
2 units of Aluminium Doors |
Warning and Illumination |
2 Cylindrical Type Top Lamp |
Monitor |
Water/Foam Monitor (Karba 1200) |
